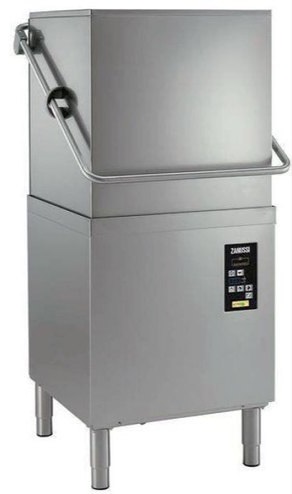

Warewashing Active Hood Type Dishwasher with Guaranteed Rinse System

  • ACTIVE model with Guaranteed Rinse System. Atmospheric boiler in ACTIVE model combine with rinse booster pump offer a perfect rinsing performance in term of constant pressure and high temperature of the water, always at 84° C during the rinse cycle regardless of the inlet water temperature (from 10°C to 60°C) and water pressure of the network (a minimum of 0.5bar or 7psi).
  • The green eye of Guaranteed Rinse System (GRS) provides the operator with an immediate signal after every rinse cycle informing that rinsing has been performed to perfection.
  • High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures
  • 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
  • Thermal label compliant approved and compliant with NSF sanitization standards
  • Incorporated Soft Start feature to offer additional protection to more delicate items
  • Three phase electrical connection, convertible to single phase on-site.
  • An effective rinse system uses only 3 litres of clean hot water per basket for lower running costs
  • Automatic start on hood closure.
  • Self-draining wash pump and boiler.
  • Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.
  • Pre-arranged to accept external dispensers.
  • Pre-arrangement for HACCP system implementation and Energy Management device.
  • Suitable to be connected to specific pre-wash tabling, service entry and exit tabling and roller conveyor tabling – included in Electrolux Professional Handling System range.
  • Open hood on the back side to prevent steam blasts to the operator.
  • 54/90/150 seconds "high productivity" cycle
  • Simple control panel with digital thermometers indicates wash/rinse temperatures
  • Maximum capacity of 47 racks per hour (Thermal label complaint mode) or 67 racks per hour (High Productivity mode).
  • Grey

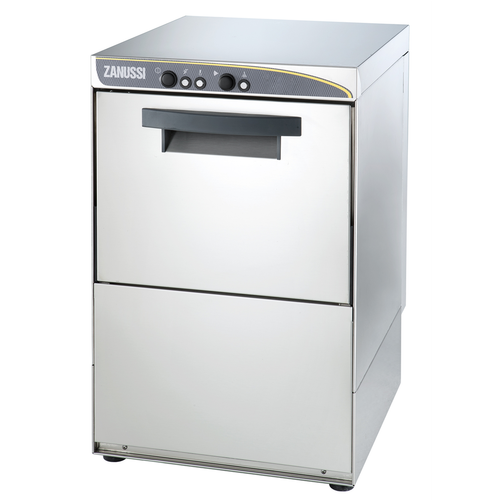

    Warewashing Small Single Skin Glasswasher 1 Cycle, 30B/H 402090

    304 AISI stainless steel front panel,wash tank and wash and rinse arms. Double skinned door. Upper and lower rotary washing arms and rising arms. Separate washing and rising circuits. Built-in 5 litre boiler, washing temprature 55/65 °C and hot rinse temperature 80/90°C

  • voltage - 230 v/1 ph/50 hz,
  • total watts: 2. 7 kw,
  • tank heating elements: 2 kw,
  • wash pump size: 0,8 kw,
  • water supply temperature: 10-60 °c
  • duration cycle - 120 sec, racks / hour - 30 nos,
  • Vrinse temperature (min): 85 °c,
  • water consumption - 2ltr/cycle,
  • weight - 45kgs,
  • size (wxdxh): 456x495x700 mm,
  • Grey
