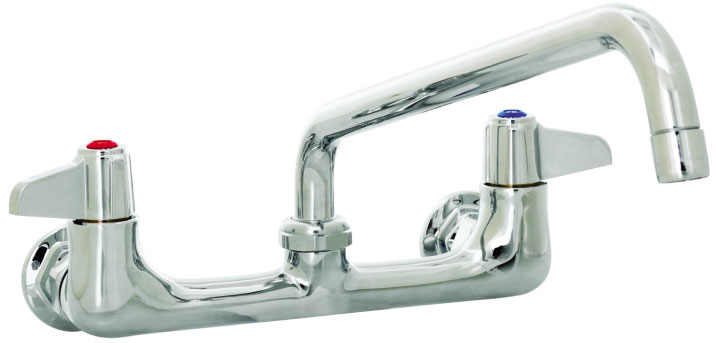

Model : 5F-8WLX12
Faucet, Wall Mount, 8" Centers, 12" Swing Nozzle
• 8" wall mount mixing faucet with polished chrome plated brass body
• 12" equip swing nozzle w/ laminar flow device
Quarter-turn ceramic cartridges
equip lever handles w/ color coded screws
1/2" NPT female inlets w/ 2" wall flanges
Model : B-0113
Single hole deck mount mixing faucet with polished chrome plated brass body, 24" riser, 44" flexible stainless steel hose with heat resistant handle,
1.15 GPM spray valve, compression cartridges with spring checks, lever handles, 18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" compression
connections, 6" adjustable wall bracket,spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV
EasyInstall riser for quick installation
Single hole deck mount mixing faucet w/ polished chrome plated brass body
44" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
1.15 GPM spray valve
Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
Lever handles w/ color coded indexes
6" adjustable wall bracket
18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
Material: Polished chrome plated brass body, riser & spray valve body, stainless steel hose and chrome plated metal handles
Model : EX-6WP12-H
Pre-Rinse Unit: Single Lever Wall Mount Base Faucet, Add-On
Faucet, 12" Swing Nozzle w/ Full Flow Aerator, 18" Riser, 44" Flexible
Stainless Steel Hose, High Flow Spray Valve & 6" Wall Bracket
equip High Flow Spray Valve
27 Washer
Spray Valve Hold Down Ring
equip 44" Flexible Stainless Steel Hose
Overhead Spring
Spring Body
6" Wall Bracket
3/8" NPT x 18" Riser
40mm S/L Ceramic Cartridge (Tall)
3 Wing Handle w/ Color Coded Indexes and Screw

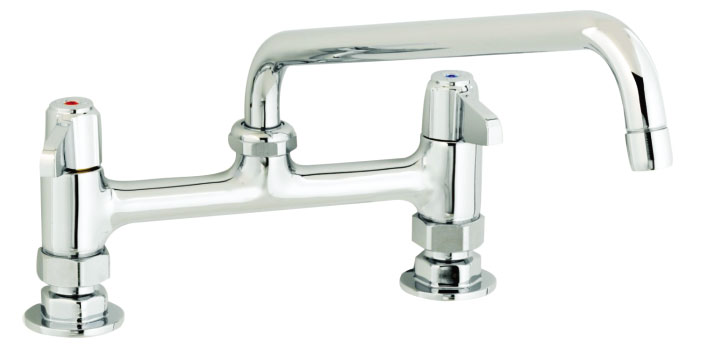

Model : 5F-8DLX12
8" deck mount mixing faucet with polished chrome plated brass body, 12" equip swing nozzle, ceramic cartridges,
equip lever handles, and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1
8" deck mount mixing faucet with polished chrome plated brass body
12" equip swing nozzle w/ laminar flow device
Quarter-turn ceramic cartridges
equip lever handles w/ color coded screws
1/2" NPT female Inlets
equip Lever Handles
---------------
Model : EX-6WP00-H
Pre-Rinse Unit: Single Lever Wall Mount Base Faucet, 24" Riser, 44" Flexible
Stainless Steel Hose, High Flow Spray Valve, 6" Wall Bracket & G 1/2" Male
equip High Flow Spray Valve
#27 Washer
Spray Valve Hold Down Ring
equip 44" Flexible Stainless Steel Hose
Overhead Spring
Spring Body
Finger Hook
6" Wall Bracket
3/8" NPT x 24" Nipple
40mm S/L Ceramic Cartridge (Tall)
Single Lever Handle, Less Logo
-------------------
-----------

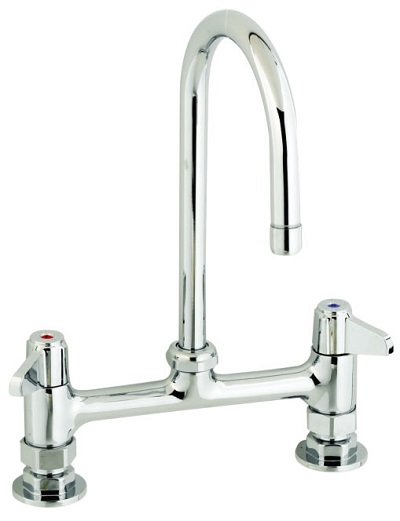

Model : 5F-8DLX05
8" deck mount mixing faucet with polished chrome plated brass body, 5 9/16" swivel gooseneck with laminar full flow device, ceramic cartridges,
lever handles and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1
8" deck mount mixing faucet with polished chrome plated brass body
5 9/16" equip swivel gooseneck w/ laminar full flow device
Quarter-turn ceramic cartridges
equip lever handles w/ color coded screws
1/2" NPT female Inlets w/ 2" flanges
Adjustable centers from 7 3/4" to 8 1/4"
-------------

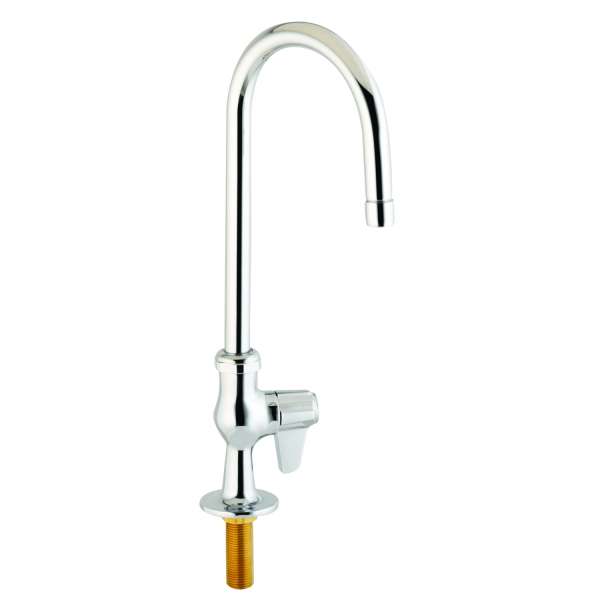

Model : 5F-1SLX05
Single hole single temperature deck mount faucet with polished chrome plated brass body, 5 9/16" swivel gooseneck, laminar flow device, ceramic cartridge, lever handle and 1/2" NPSM male inlet.
Certified to ASME A112.18.1\CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI\ICC A117.1
Single hole single temperature deck mount faucet w/ polished chrome plated brass body
5 9/16" swivel gooseneck w/ laminar flow device
Quarter-turn ceramic cartridge
equip lever handle
1/2" NPSM male inlet
